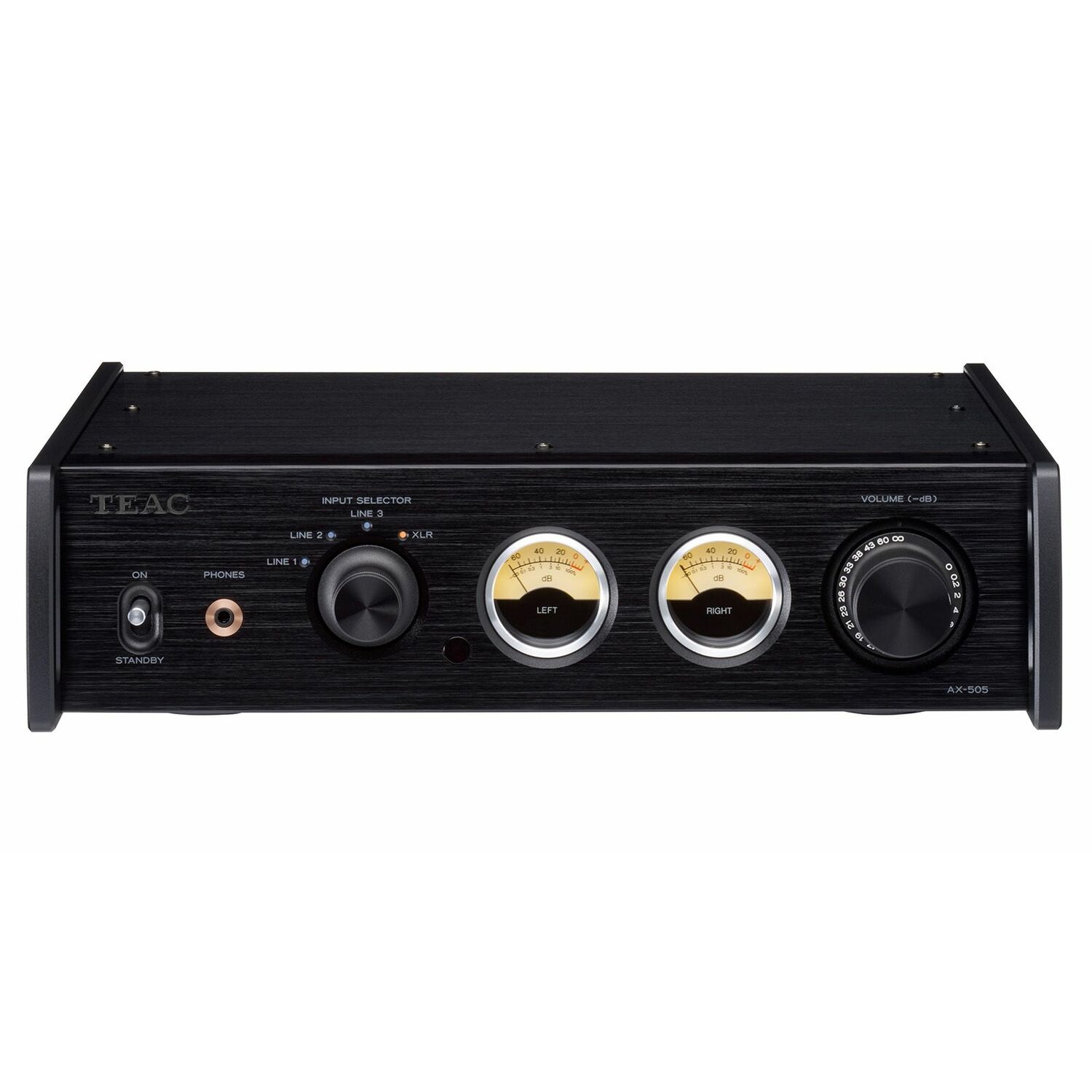

TEAC AX-505 Integrated amplifier
TEAC AX-505 Integrated amplifier
#102857029
(0 сэтгэгдэл)
Price section
Үнэ
2,999,900₮
TEAC AX-505 Integrated amplifier
TEAC AX-505 Integrated amplifier
Үнэ
2,999,900₮
| Amplifier section | |
| Max output power | 130W + 130W (4Ω, 1kHz, JEITA) 90W + 90W (8Ω, 1kHz, JEITA) |
| Rated output power | 115W + 115W (4Ω, 1kHz, THD 0.8%) 70W + 70W (8Ω, 1kHz, THD 0.8%) |
| Total harmonic distortion | 0.002% (8Ω, 1kHz, 12.5W, JEITA) |
| Signal-to-Noise ratio | 110dB (8Ω, 1kHz, IHF-A) |
| Frequency response | 10Hz to 50kHz (-5dB, 8Ω, 1W, JEITA) |

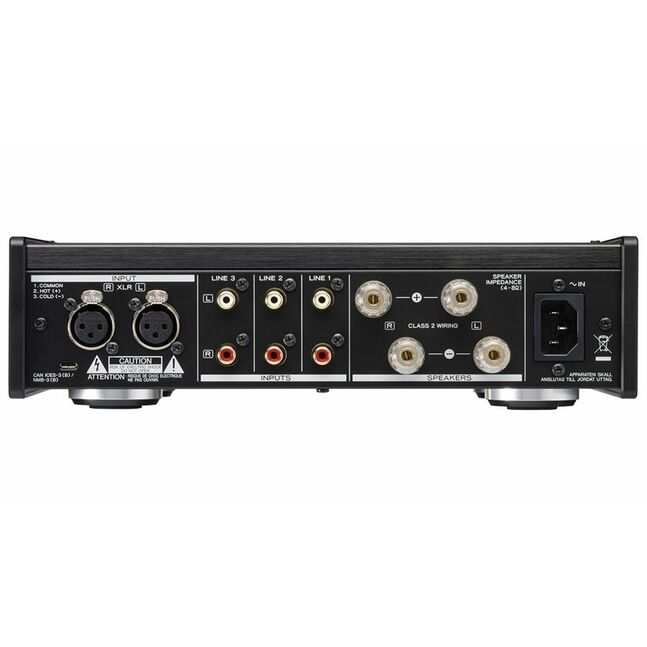

| Input section | |
| LINE IN (Balanced) | |
| Connector | XLR (2: HOT) × 1 pair |
| Max input level | 3Vrms |
| LINE IN (Unbalance) | |
| Connector | RCA (gold-plated) × 3 pairs |
| Max input level | 2.5Vrms |
| Speaker output | |
| Connector | Screw-type × 1 set (gold-plated, Compatible with AWG8 and Banana-plugs) |
| Supported speaker impedance | 4Ω to 8Ω |
| Headphone output | |
| Connector | 1/8" (3.5mm) 4-pole stereo jack |
| Type of connection | Ground separate |
| Max output power | 360mW + 360mW (32Ω loaded, THD 10%, JEITA) |
| Frequency response | 5Hz to 150kHz (–3dB) |
| Total harmonic distortion | 0.003% (Output power 30mW 32Ω loaded) |
| Signal-to-Noise ratio | 115dB |
| Power | AC220 to 240V, 50Hz (UK/Europe) |
| Power consumption | 110W |
| Standby power | 0.1W or less (at Auto-power saving mode) |
| Overall dimensions | 11.4" × 3.2" × 10.4" / 290 × 81.2 × 264mm (W × H × D) |
| Weight | 9.27 lbs. / 4.2kg |
| Included accessories | Power cord, Remote control (RC-1332), AAA batteries × 2, Owner's manual (incl. Warranty card) |
